Hikurangi response planning toolbox

The Hikurangi Response Planning Toolbox is a research-based reference document for response planning, underpinned by a credible magnitude 8.9 earthquake and tsunami scenario, modelled by GNS Science.

A large Hikurangi Subduction Zone event like this would be catastrophic and the Toolbox provides recommendations for impacts of this scale, however it can also be scaled to support planning for smaller events, or even different events with similar impacts.

The Toolbox explores the complex impacts of a large Hikurangi event, across the built, economic, social and natural environments, and provides context, considerations, and recommendations for how to respond to these impacts. The Toolbox also contains a list of workstreams which function as a high-level framework for planning, and these should be adapted to meet the needs of your organisation.

The summary below is a snapshot of the introductory section of the Toolbox. For more detail, including regional response concept papers for each of ECLAB's five regions (Te Moana-a-Toi/Bay of Plenty, Tairāwhiti/Gisborne, Te Matau-a-Māui/Hawke's Bay, Manawātu-Whanganui, and Pōneke/Wellington), download the full Hikurangi Response Planning Toolbox.

Download the full Hikurangi Response Planning Toolbox for free, to get your plan started:

Hikurangi Response

The hazard:

ghdjkgsThe Hikurangi Subduction Zone, located off the east coast of Te Ika-a-Māui, the North Island, is Aotearoa's largest and most active fault.

Subduction Zones are known for producing the largest earthquakes in the world. In 2011, a magnitude 9.1 earthquake occurred on the Japan Trench, east of mainland Japan, which also created a large and devastating tsunami. This event resulted in approximately 20,000 fatalities or missing people and over $210 billion in economic damage (The World Bank, 2014).

For more information: The Hikurangi Subduction Zone





Likelihood:

Scientists know the Hikurangi Subduction Zone can produce large earthquakes and tsunami, and that these events have occurred in the past. Critically, recent research indicates there is a 1 in 4 chance of a major Hikurangi Subduction Zone event, in the next 50 years.



Vulnerability:

An estimated 65% of people in Aotearoa live within 5km of the ocean (LGNZ, 2019). Specifically, a national-scale coastal exposure assessment by NIWA, found that the proportions of normally resident populations in these low-lying areas by region were (based on 2013 census):

  • Te Moana-a-Toi/Bay of Plenty - 31,000 (12%)
  • Tairāwhiti/Gisborne - 4,600 (11%)
  • Te Matau-a-Māui/Hawke's Bay - 43,000 (29%)
  • Pōneke/Wellington - 33,500 (7%)

Large populations near the coast increases vulnerability to large tsunami because issues such as traffic congestion (both foot-based and vehicle based) during tsunami evacuations becomes more prevalent and problematic, this was observed during the 2004 Indian Ocean tsunami and 2011 Tōhoku Japan tsunami (Mas et al. 2015).

The earthquake

scenario screenshot Copy

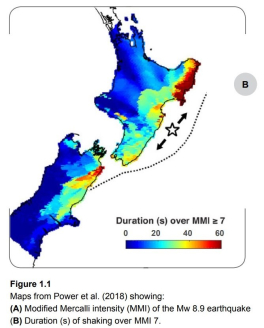

scenario screenshotThe Toolbox has been developed using a credible magnitude 8.9 earthquake and tsunami planning scenario as a tool. This was developed by GNS Science, to help identify consequences of a large Hikurangi event.



A credible, magnitude 8.9 earthquake generates extreme (MMI 9.0-12.0) ground shaking along the east coast of Aotearoa, with MMI 7 and above shaking lasting for minutes in places.



Parts of Central Te Ika-a-Māui/North Island, also experience shaking of MMI 8.0-9.0, and most of the rest of Te Ika-a-Māui and northern Te Waipounamu/ South Island experience above MMI 7.0.

Between Mahia and East Cape the duration of intense shaking is very long, amplified by the thick sedimentary rock, with durations of severe ground shaking of more than 60 seconds.

Aftershocks occur after the main earthquake.

(MMI - Modified Mercali Intensity Scale)



The tsunami

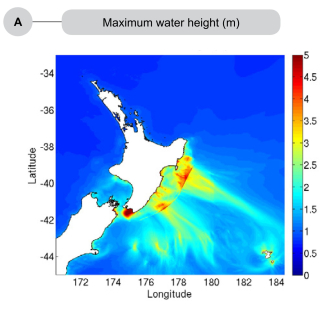

Screenshot 2023 06 08 144034

The offshore magnitude 8.9 earthquake initiates a large tsunami, due to displacement of the seafloor.

Tsunami will be an ongoing hazard as multiple waves will arrive - the first wave will not necessarily be the largest.

Tsunami will represent an ongoing challenge for the initial response, reducing access to large portions of the coastline damaged by the initial earthquake. Aftershocks may also bring risk of further tsunami.



Other secondary and compounding hazards

The following list is not exhaustive but represents some secondary and compounding risks which will complicate initial response activities and reduce the mobility of responders in the regions most affected.

Earthquake aftershocks

Screenshot 2023 06 08 151721

Infrastructure damage

Screenshot 2023 06 08 151913

Uplift/Subsidence

Screenshot 2023 06 08 151741

Landslides
Screenshot 2023 06 08 151901
Communicable disease

Screenshot 2023 06 08 151847

Disaster waste/debris
Screenshot 2023 06 08 151830
Liquefaction
Screenshot 2023 06 08 151812


The Toolbox provides an overview of planning considerations relating to the following impacts, as well as recommendations for addressing these:

Social environment

  • 100s - 1000s of fatalities
  • 1000s - 10,000s of injuries
  • 10,000s of displaced persons and animals
  • Significant, and in some cases, long-lasting psychosocial impacts
  • Significant demand on welfare support
  • Significant long-term demands on responding agency staff.



Natural environment

  • Landslides and rockfalls
  • Liquefaction
  • Disaster waste and debris
  • Lateral spreading
  • Release of contaminants/hazardous substances into ecosystems
  • Subsidence or uplift of land
  • Permanent coastal inundation in some areas of land
  • subsidence.

Built environment

  • 10,000s of damaged buildings, some of which will be irreparable
  • Significant disruption, and in the worst affected areas irreparable damage, to lifelines such as power, telecommunications, water, gas, and transport infrastructure
  • Damaged, and in some cases uninhabitable, emergency coordination facilities.

Economic environment

  • Disruption to agriculture and damage to cultivation land
  • Damage to Central Business Districts
  • Disrupted business operations and supply chains
  • Tourism impacts
  • Loss of individual livelihoods.

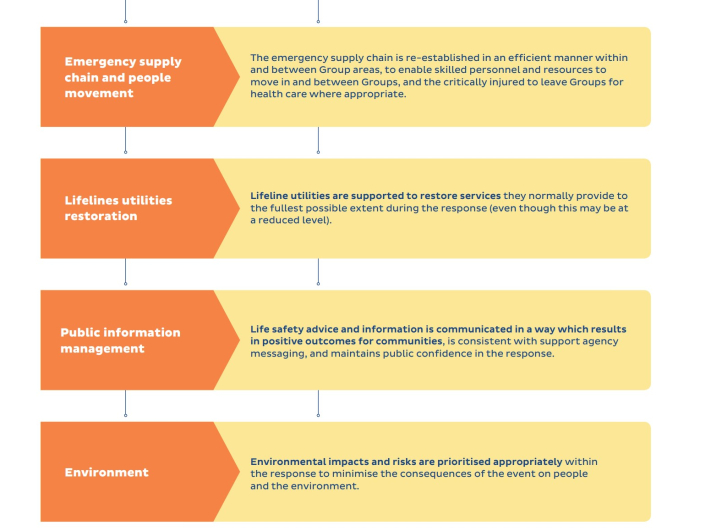

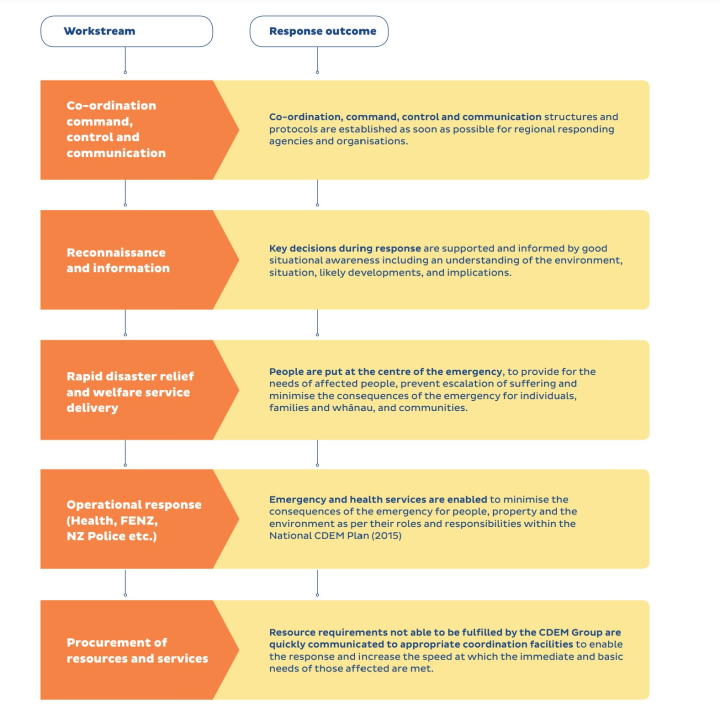

This list of key workstreams is intended to aid regional response planning, it is not intended to replace the Coordinated Incident Management System (CIMS) structure. The CIMS structure defines roles and responsibilities, where workstreams are intended to identify intended response outcomes, these may sit within one or across multiple CIMS functions.

Screenshot 2023 06 08 161341Screenshot 2023 06 08 161414
